View Specifications
GENERAL

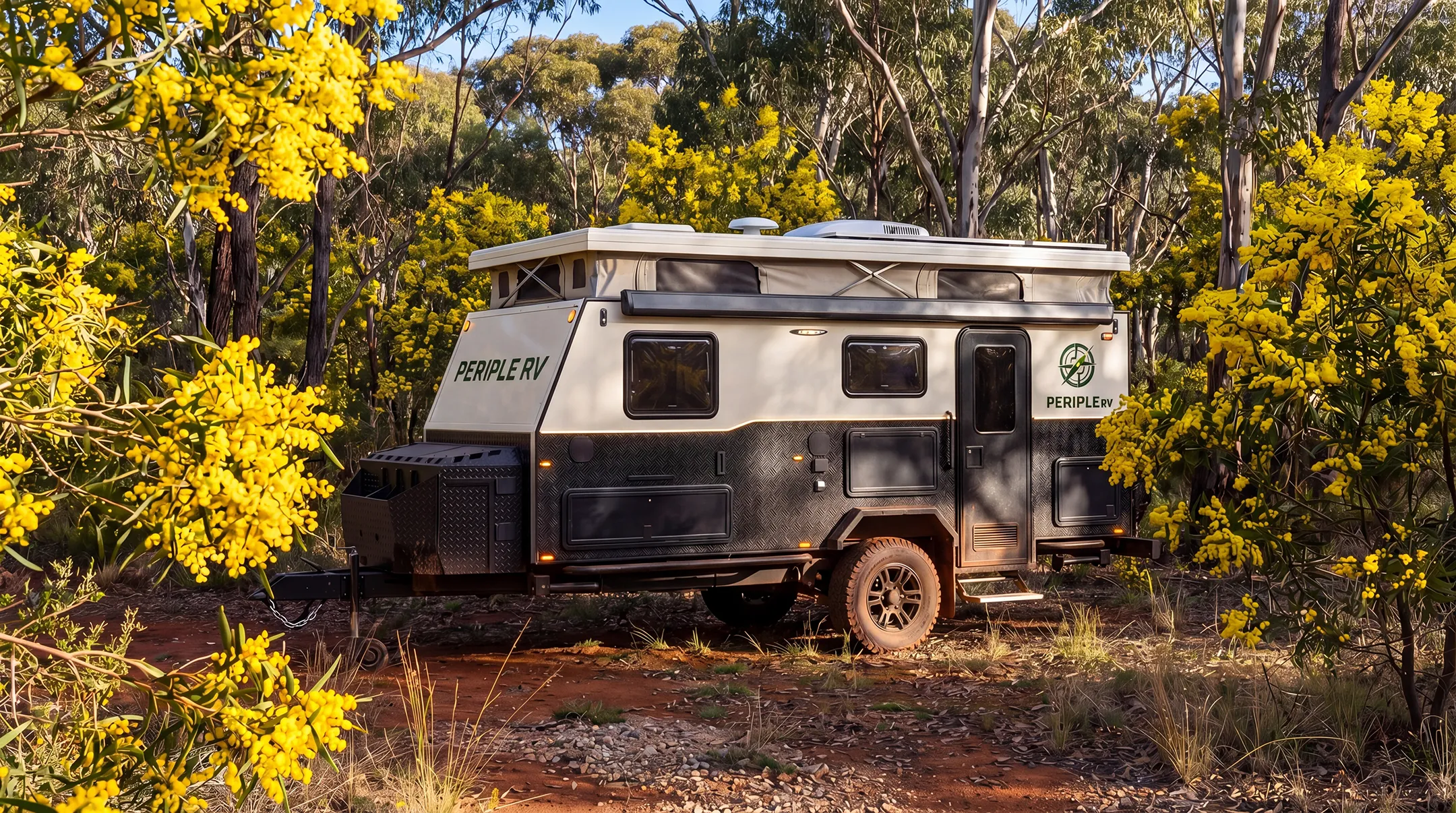

- 16FT Off-road pop-top Caravan
- High Qaulity FRP+XPS+FRP timberless ( sandwich panel)
- Overall Dimensions: 7093 (L)*2400(W)*2680(H) mm
WEIGHTS & RATINGS
- ATM: Approx 2900KG
- Tare Mass: Approx 2150KG
- Max Payload: 750KG (with breakaway unit)
CHASSIS
- Chassis Material: Grade 450 equivalent + Hot dip Galvanized +Underbody Coating/Armor
- Crusiemaster DO35 3.5T Coupling
- ARK XO 750 Heavy duty jockey wheel
- Single Axle, Independent coil spring trailing arm suspension
- Pedders 4X4 shocks
- 12 inch electromagnetic brakes with hand brake
- 265/75 R16 Offroad Tires*3
- 16 inch Alloy Rim
- TIMKEN Heavy duty Bearings (US)
- 4 x heavy duty adjustable drop down
LIVING STYLE
- Accommodation Capacity: 2 Adults + 1 Child
- Convertible King Bed: 2000*1850mm, spring-mattress
- Convert facing Sofa: 1860*900mm (2 pcs)
- Separate shower and toilet
- Multifunctional home-kind cabinet
MAJOR APPLICANCES
- Dometic Roof-mounted air conditioner hot/cold
- Truma hotwater system
- 170L 12v KOOLTRON refrigerator
- Built-in Micorwave
- 12V premium extractor rangehood
- Premium Induction cooktop
- AUFOCUS Diesel Heater
EXTERIOR
- 12V electric / Manual cassette awning
- Full annex (OPTIONAL)
- 2 x 9kg gas cylinder holders with pigtail connector
- 2 x 20L jerry can holders
- 2 x 95L fresh water & 1 x 90L grey water
- 12V electric marine diaphragm pump
- External Slide out stainless steel body kitchen
- thetford cooktop/ stainless steel sink with with plumbed hot & cold water supply
- Aluminum Toolbox + Wood storage
- Fridge Slide (passenger side)
- Hot/cold external shower
PLUMBING
- Watermark plumbing fixtures and tempering valve
- Watermark pipes and fittings
- Thetford toilet
- 2*Gas cylinders: 9KG*2
- Gas valve and gas copper pipe
- Gas Compliance Certificate (Australian Standard)
- Modern style kitchen sink and taps
ELECTRICAL
- Lithium battery (300w/600w/900w)
- Solar Panels (400A/600A/800A)
- Renogy battery management system (3000w inverter / bluetooth / 7inch screen)
- Renogy One Core RV management system
- Renogy Vision touchscreen user interface
- Renogy Smart Distribution box with 10 way switch panel
- Renogy 3000W inverter charger
- Renogy DC-DC Battery Charger
- Renogy MPPT Charger Controller
- Renogy Smart Shunt
- 12-pin flat
- MP5 player unit with internal & external speakers
- 24inch Smart TV with 12V compatibility, USB and Internal TV brackets
- TV antenna
- 4 x 12V wall-mounted 3-speed fan
LIGHTING
- Main ceiling light + Bedside reading light + Entryway LED strip + Interior ambient lighting strip
- Power outlets + Power switches + USB ports + USB-C ports + Cigarette lighter socket (12V)
- LED lighting + Solar lights × 2 + Compartment/Hatch lights
- ADR approved signal lighting system
- ADR approved Side Lights / Front Lights/ Reflector
SAFETY
- Emergency braking system
- Reverse camera + 7-inch display screen
- Standalone photoelectric smoke detector + Carbon monoxide alarm + Gas alarm
- Gas safety valve
- 1KG fire extinguisher (Complies with AS/NZS certification)
- Rear bumper/Crash bar + Side bumper/Crash bar
